Double Angle Aluminum Extrusion

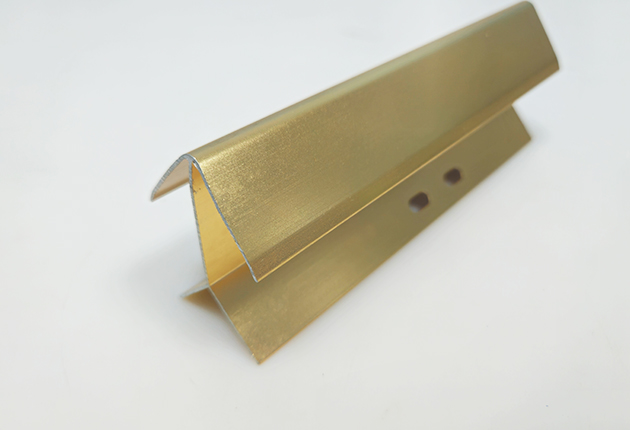

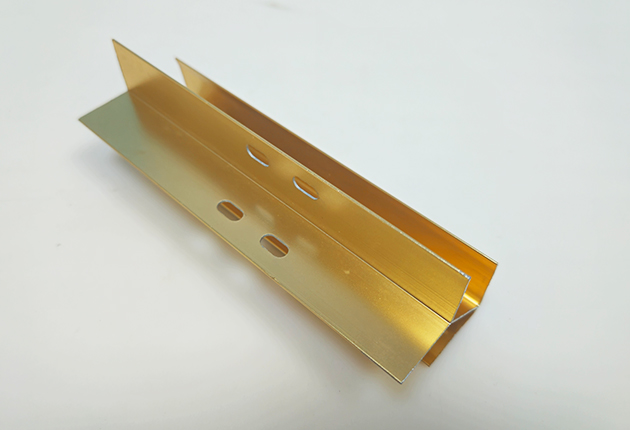

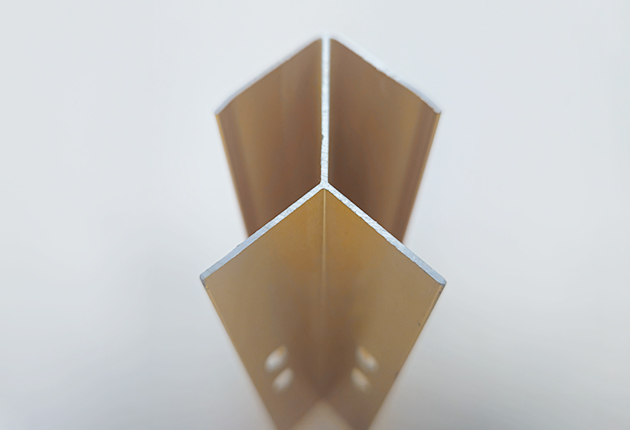

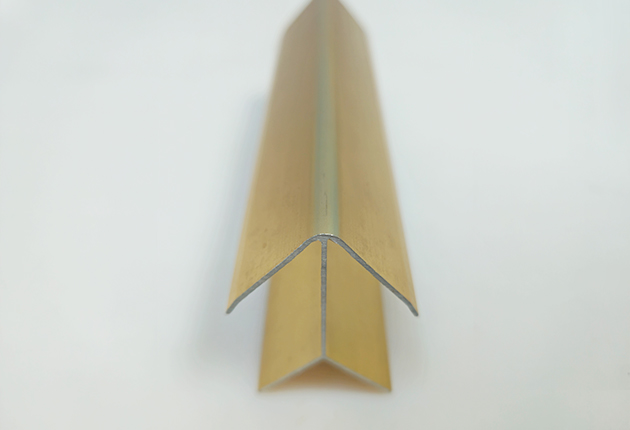

Gold Anodizing Double Angle Aluminum Extrusion Profile
Gold Anodizing Aluminum Extrusion Profile L Bracket Double Angle Aluminum Extrusion Profile
Brand Name:Huayang
Grade: 6000 Series
Temper: T5 T6
Shape:Angle
Surface Treatment: Powder Coated / Anodized / Chromed / Alodine /Wood Grain
Alloy Or Not: Is Alloy
Usage:Industrial,construction, etc.
Deep Process: CNC, Drilling, Milling, Cutting, Welding, Bending, Assembling
Certification: ISO 9001:2015,SGS,ROHS
Length: According To Your Requirement
OEM/ODM:YES
Introduction
Technical Data
Application
Product details
Company Information
FAQ
Product Description

The angles of aluminum are not all the same length on both sides, but also have L-shaped, one-side long and short angle aluminum, and angled aluminum with rounded corners, all have their own special purposes.The below is where it use:
1. Industrial aluminum profiles: frame structure, load table, closed structure, production line, civil aluminum frame.
2. Aluminum products: power amplifier molding finishing, surface treatment. Aluminum parts for automobiles, motors, elevators, and cylinders. Decoration, advertising, display, light boxes, aluminum products and profiles.
3. The stage film and television modeling, the main aluminum frame shape, curtain, chandelier, audio support frame, air box and dedicated activity workbench.
Technical Data

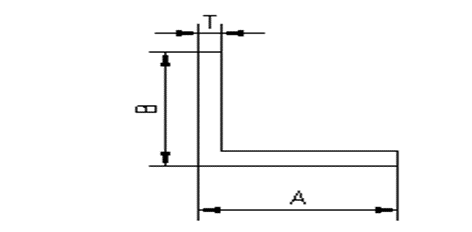

Conventional profile angle aluminum

Modle A(mm) B(mm) T(mm) (kg/m) Modle A(mm) B(mm) T(mm) (kg/m)
HY-002 18 18 1 0.095 DS439 32 12 3/5 0.488
HY-032 12.2 18.8 0.8 0.065 J25*30-3.0 30 25 3 0.421
HY-056 13 23 1.2 0.113 J20*30-2.0 20 30 2 0.259
HY-20*30*2.35 20 30 2.35 0.3 J20*20-2.0 20 20 2 0.206
HY-J30*20-1.6 20 30 1.6 0.21 J20*20-1.5 20 20 1.5 0.156
HY-JY20*20-3.0 20 20 3 0.301 J10*10-1.5 10 10 1.5 0.075
J25*20-3.0 20 25 3 0.341 J50*37-5.0 37 50 5 1.111
HY-25*25*2.8 25 25 2.8 0.36 J38*38-4.0 38 38 4 0.78
HY-30*20 30 20 2.35 0.31 J40*30-2.2 40 30 2.2 0.404
HY-30*20 30 20 3 0.383 J50*50-3.0 50 50 3 0.789
J30*30*1.05 30 30 1.05 0.17 AP-14 50 50 6 1.528
J30*30-3.0 30 30 3 0.463 HY-AP-15 50 75 6 1.942
J48*48*1.0 48 48 1 0.257 J30*30-1.3 30 30 1.3 0.21
HY-J50*50*5.0 50 50 5 1.287 J40*40-1.6 40 40 1.6 0.34
HY-35*25 35 25 3 0.462 J50*50-1.6 50 50 1.6 0.43
HY-DS397 25 25 2 0.26 J50*50-3.0 50 50 3 0.79
J40*20-4.0 40 20 4 0.604 J70*40-1.6 70 40 1.6 0.47
HY-DS133 25 20 2 0.233 JL40*40-2.8 40 40 2.8 0.59
HY-052 60 20 1.11 0.237 WML25*25-1.6H 25 25 1.6 0.21
WML40*40*1.6I 40 40 1.6 0.34 JL30*20 30 20 1 0.13
WML50*50-1.6J 50 50 1.6 0.43 JL30*30-3.7 30 30 3.7 0.56
WML50*50-3K 50 50 3 0.79 JL13*10L 13 10 3 0.16
WML70*40-1.6L 70 40 1.6 0.47 JL30*30-1 30 30 1 0.16
JL38.1*38.1-2.5 38.1 38.1 2.5 0.499 JL60*25-17 60 25 1.7 0.38
SYJL30*3.7 30 30 3.7 0.54 JL150*40 150 40 2 1.02
JL38*68-3 68 38 3 0.84 JL80*80-2 80 80 2 0.86
J50*50-5.0 50 50 5 1.287 JL80*80-5 80 80 5 2.1
Application
Attributes form

Product Name
Aluminum angle profile
Material 6000 series, like 6063, 6061.
Temper
T4, T5, T6

Thickness General profiles thickness:  0.8 - 5.0 mm;
Anodized protection thickness:  8 - 25 um;
Powder coating color thickness:  40 - 120 um.
Length Customized request available
Shape square, flat, round, hollow, oval, triangle, U-profiles, L-profiles, T-profiles, H-profiles, customized available
Surface Treatment mill finish, anodized, powder coated
Color Metal silver, black, white, mirror, customized request available
Application windows and doors, curtain walls, glass wall, furniture, ceiling, kitchen, LED strip, transportation rail, vehicles, motor housing, machine, tent, solar,etc.
Product display and specifications
1) Provide competitive prices to customers with quality products.
2) On-time delivery and good quality control.
3) Best team service and after-sales service.
4) Free samples and molds (on a certain order basis)
5) Small orders are also acceptable.
6) All our configuration files can be customized.

Ton/Tons per month aluminum profile
Packaging & Delivery:EPE,The plastic film is wrapped around the outer wrap and wrapped in kraft paper Or can use a carton.
Lead Time:Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

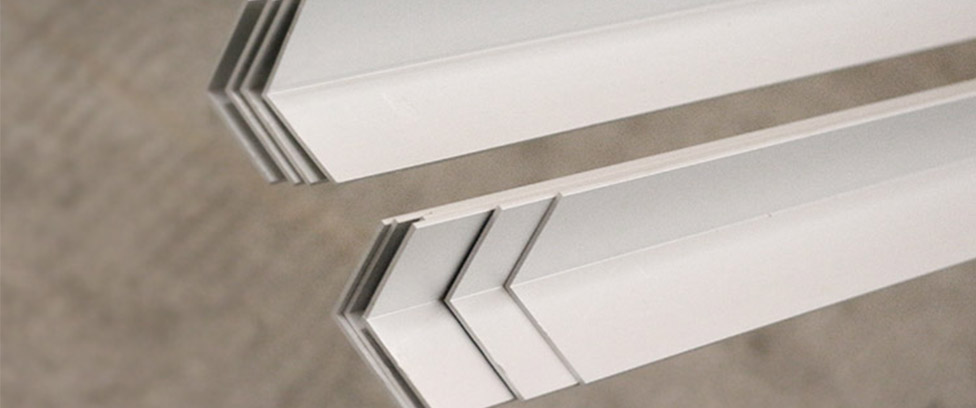

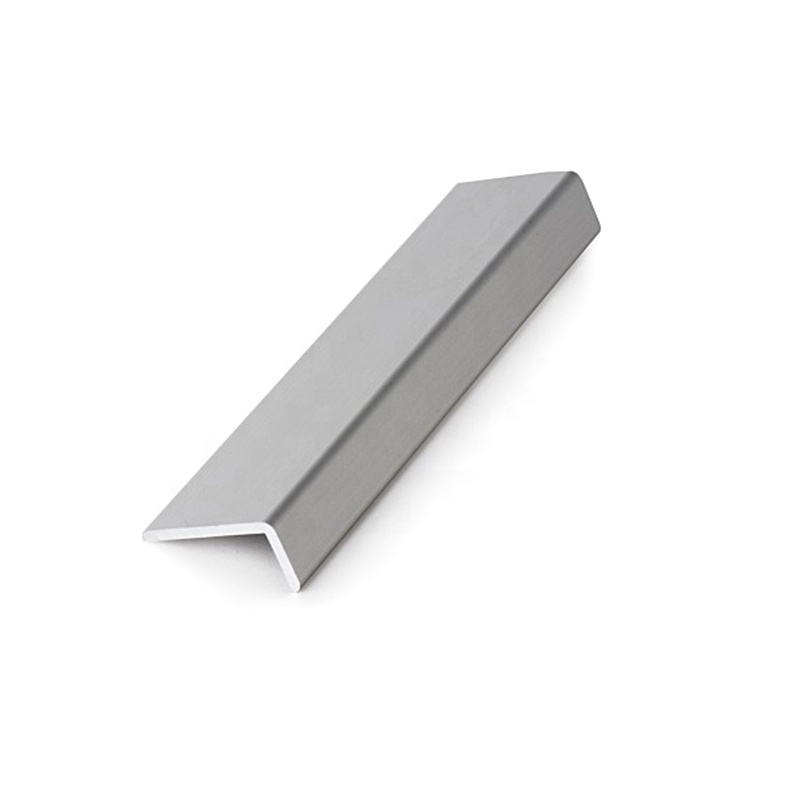

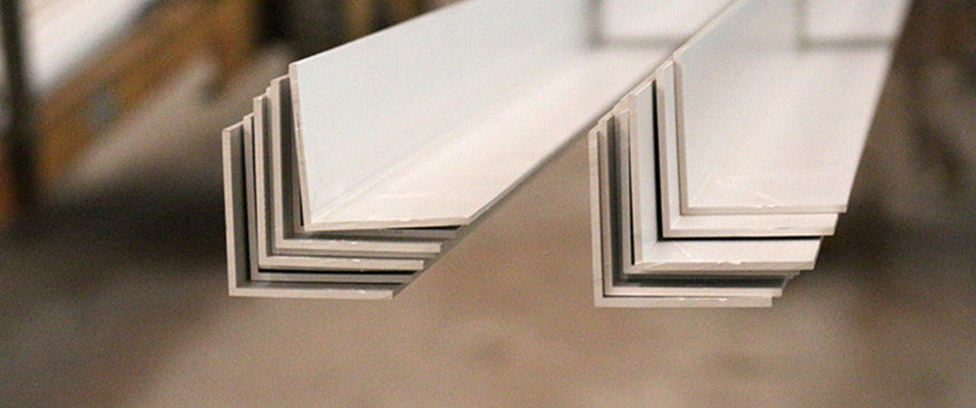

Product details
6061 T6 aluminum angle is the most commonly used aluminum for structural applications.It has above average corrosion resistance, good machinability, and is excellent for welding.6061 aluminum angle is heat-treatable, resistant to stress cracking and non-magnetic.

6063 T5aluminium angle has sharp corners and is generally used where surface finish is more important than strength.6063 Anodized Aluminum Angle offers very high corrosion resistance and high strength. Being Anodized, 6063 has a strong oxidized coat that replaces the original aluminum during the chemical process.This type of Anodized Aluminum Tube is clear coated and looks very similar to generic 6061 aluminum.

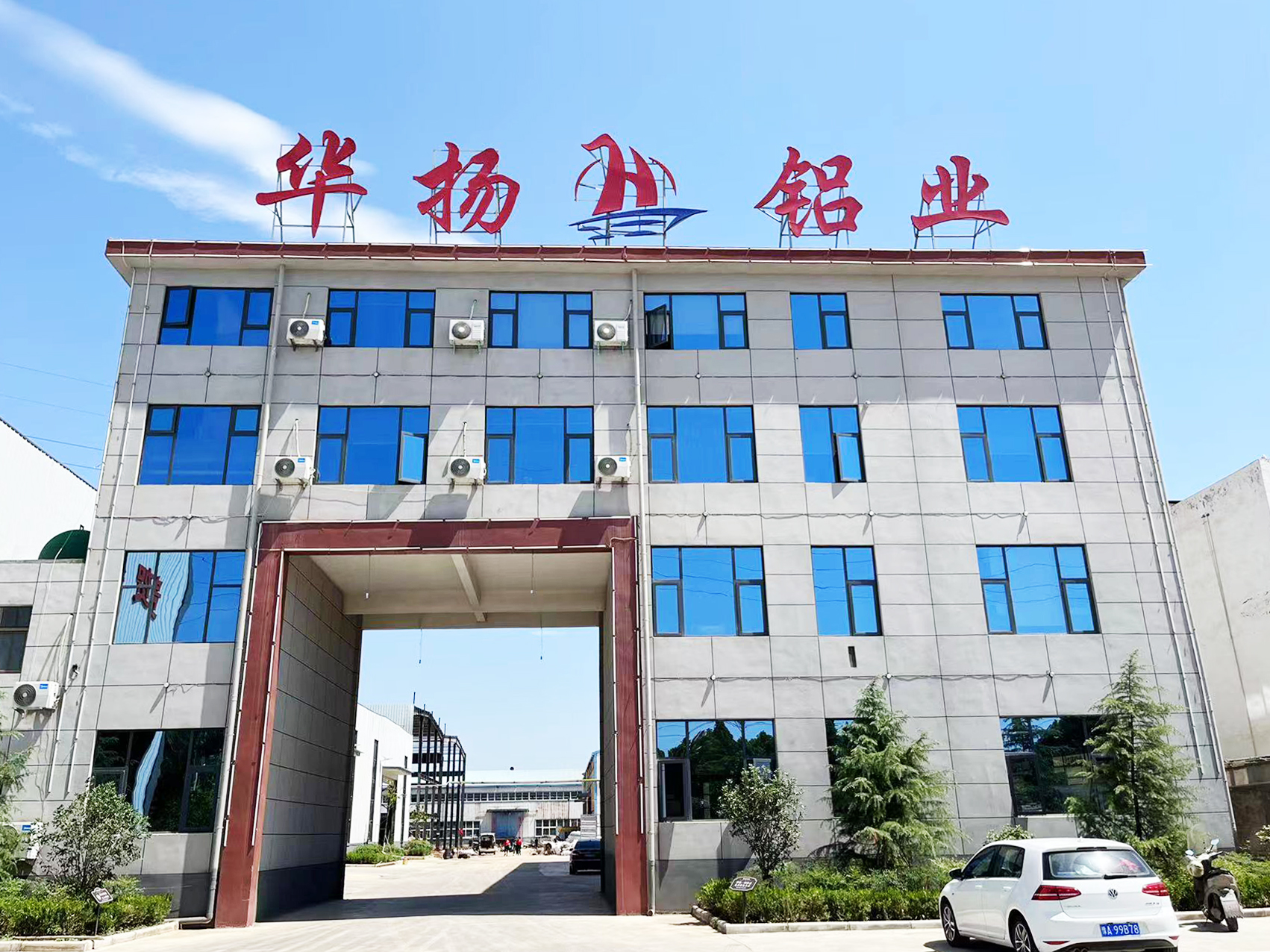

Company Information


Gongyi Huayang Aluminum Co., Ltd. is a professional supplier of metal aluminum alloy products. The company is located in Huiguo Town, Gongyi City, Henan Province. Excellent quality and excellent service are the lives of our company.We are committed to providing our customers with quality products and services to ensure smooth delivery to our customers. We have professional sales staff who can help you recommend high quality products. Of course, we also ensure smooth arrangements for production, customs clearance and transportation. As long as you have a request, we will try our best to meet your request. We sincerely hope to establish long-term cooperation relationship with each customer.

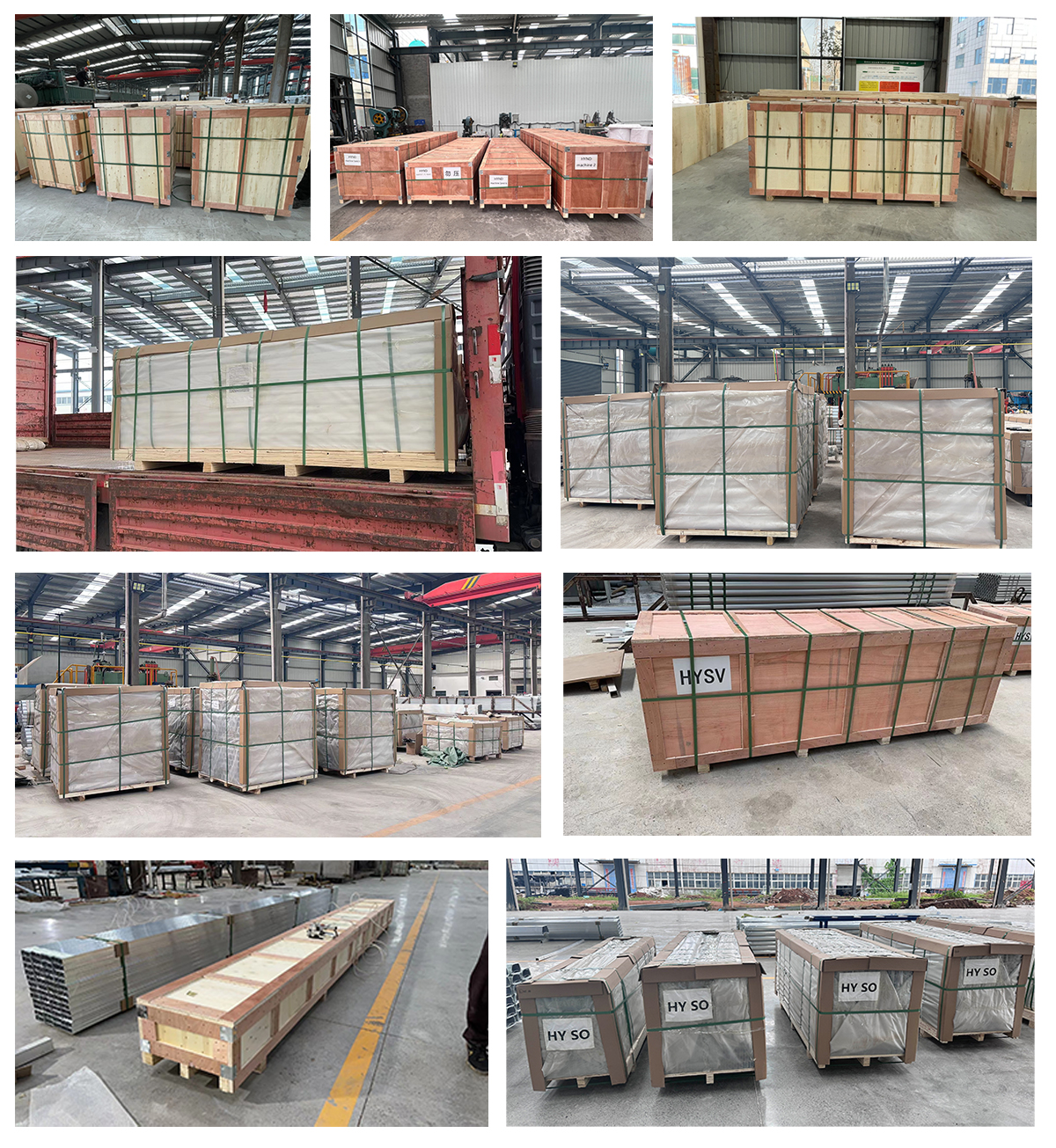

Packaging & Shipping

Packing Details:

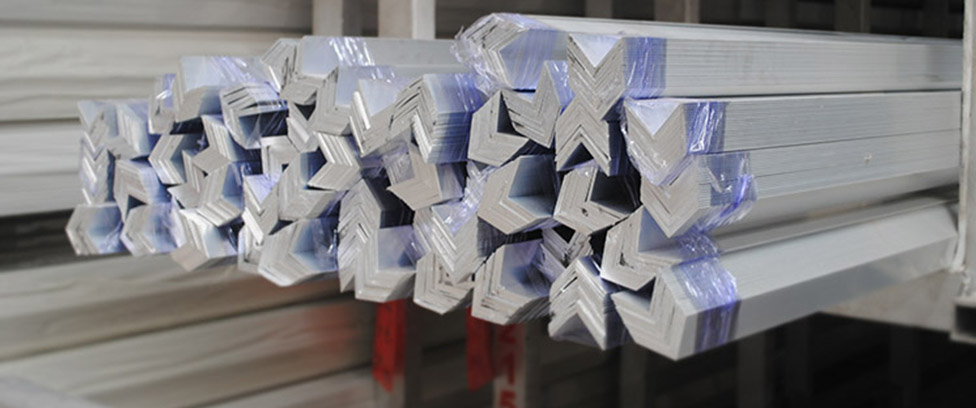

1, Bundles Packing:
-- Inside: packed with plastic protective film to protect each piece
-- Outside: Wrap to be bundles by waterproof craft paper or EPE film.
2, Carton Packing:
--Inside: Each pcs pack in one plastic bag;
--Outside: Numbers of quantity put in one carton.
3, Wood Pallet Packing:
-- Inside: Bundles or cartons packing;
-- Outside: Numbers of bundles or cartons laden on one wood pallet.
4, Customized Packing Request Available.

FAQ
1: I Need Aluminum Profiles, How Can I Contact You Quickly?
Email:huayangalu@gmail.com whatsapp/Wecha/Telephone:+8615093222866 After Receiving The Message, We Will Contact You Within 2 Hours
2: Do You Provide Samples?
Yes, We Provide Samples, Just Contact Us What Kind Of Samples You Need
3: Are You Trading Company Or Manufacturer?
We Have Our Own Factory And Many Years Of Cooperation With The Factory.
4: What Is Your Lead Time For Production?
It Takes About 10-15 Days From Mold Opening To Delivery.
5: Can I Have A Visit To Your Company Before Taking An Order?
Sure,welcome!
6: What Is Your Minimum Order Quantity?
Our Minimum Order Quantity Is 1KG.
7: What Is Your Package?
We Mainly Use Wooden Boxes, Pallets, Cartons, etc. If You Have Special Packaging Needs, We Can Also Meet Them.
8: How Can You Guarantee The Quality?
Before Mass Production,We Will Test The Mould Till Its Quality Pass. In The Production,Your Order Will Be Followed By QC During Every Step. Every Product Must Be Checked And Signed Before They Move To The Next Process. At The Same Time, We Also Welcome You Or Your Agent To Inspect The Goods Before Shipment.
